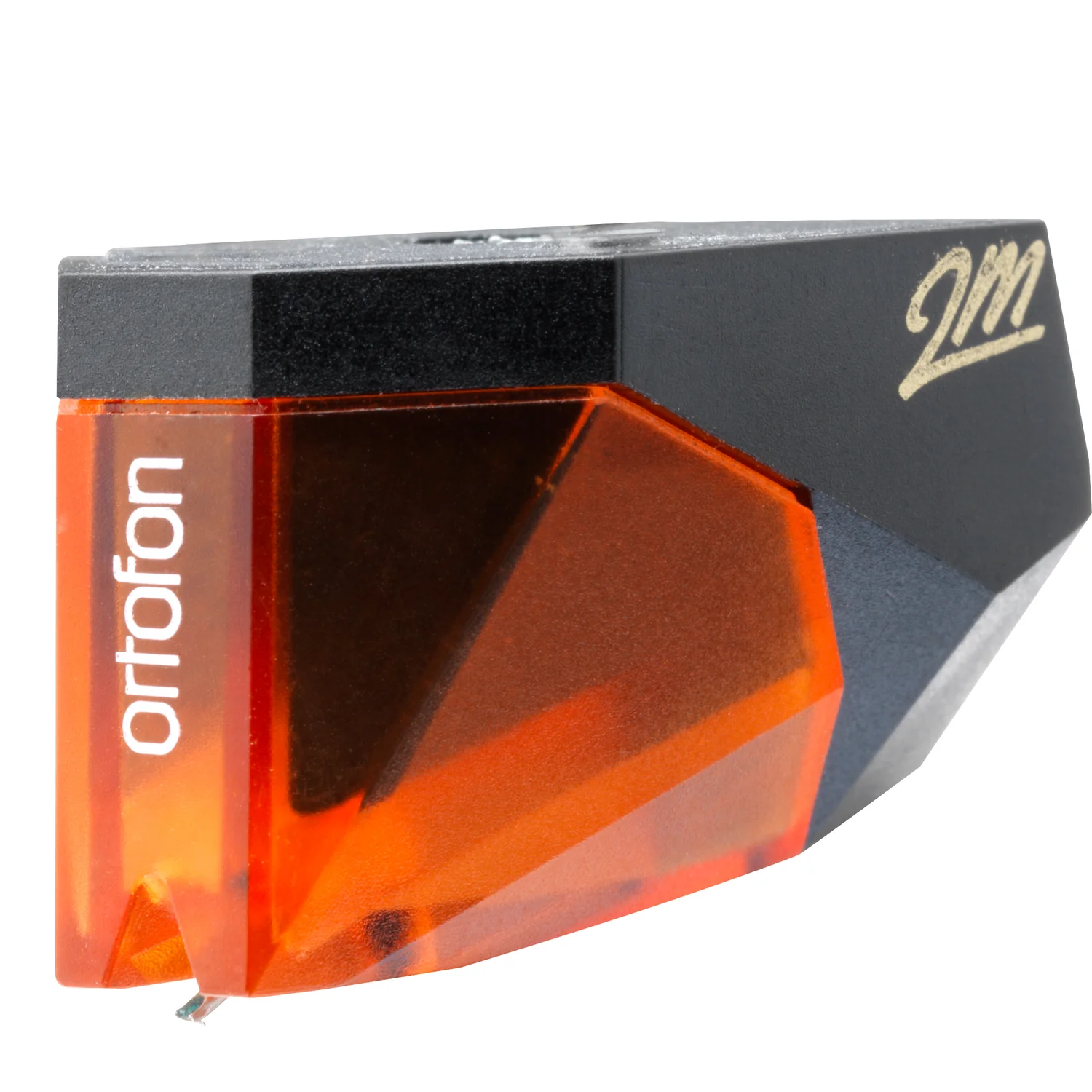

This is the image of the Ortofon 2M Bronze stylus.

Ortofon 2M Bronze

R10,110.00

Only 1 left in stock

South African rand (R) - ZAR
  • South African rand (R) - ZAR
  • United States dollar ($) - USD
  • Euro (€) - EUR
  • Pound sterling (£) - GBP
  • Canadian dollar ($) - CAD
  • Australian dollar ($) - AUD
  • Singapore dollar ($) - SGD
Add to wishlist
SKU: 5705769080025-1 Categories: , , , Tags: , , , , , ,

2M Blue Technical Data

  • Channel balance at 1 kHz
    1 dB
  • Output voltage at 1 kHz, 5cm/sec
    5 mV
  • Channel seperation at 1 kHz
    26 dB
  • Channel seperation at 15 kHz
    15 dB
  • Frequency response 20 Hz – 20 kHz
    2 / – 0 dB
  • Tracking ability at 315Hz at recommended tracking force
    80 µm
  • Compliance, dynamic, lateral
    22 µm/mN
  • Stylus type
    Nude Fine Line
  • Stylus tip radius
    r/R 8/40 µm
  • Tracking force range
    1.4-1.7 g (14-17 mN)
  • Tracking force, recommended
    1.5 g (15 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.2 kOhm
  • Cartridge colour
    Black/Bronze
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    630 mH
  • Recommended load capacitance
    150-300 pF

Grading: New & Sealed

Weight 0.6 kg
