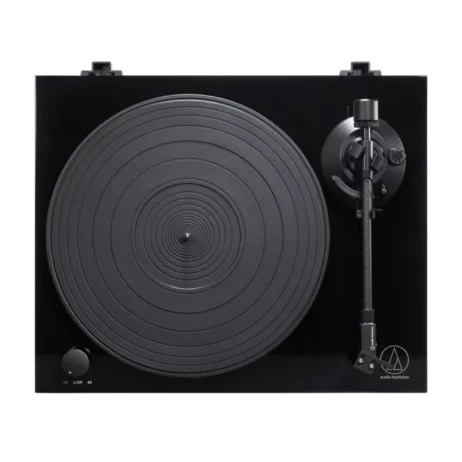

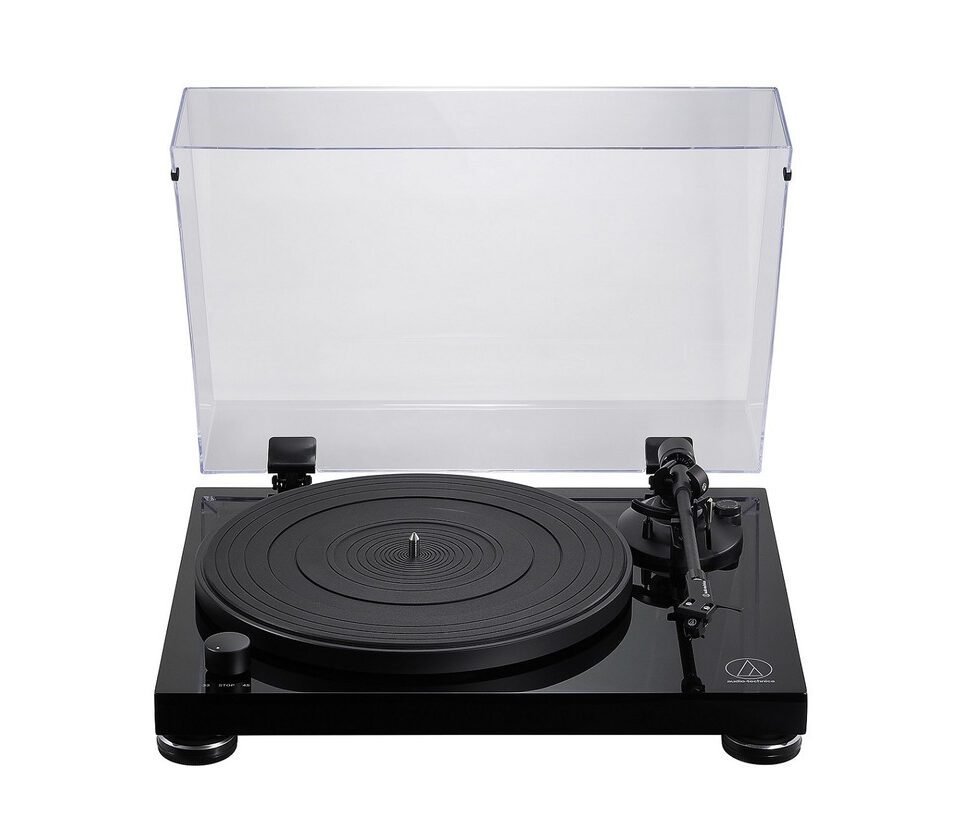

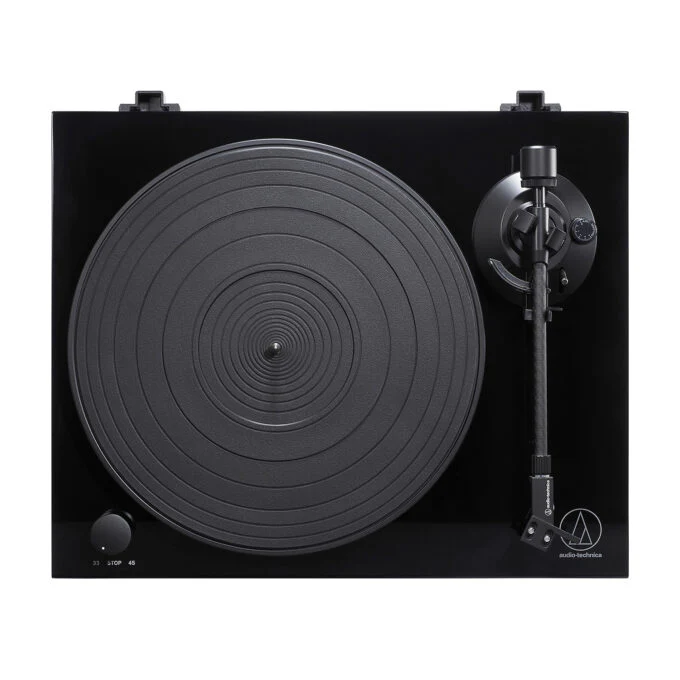

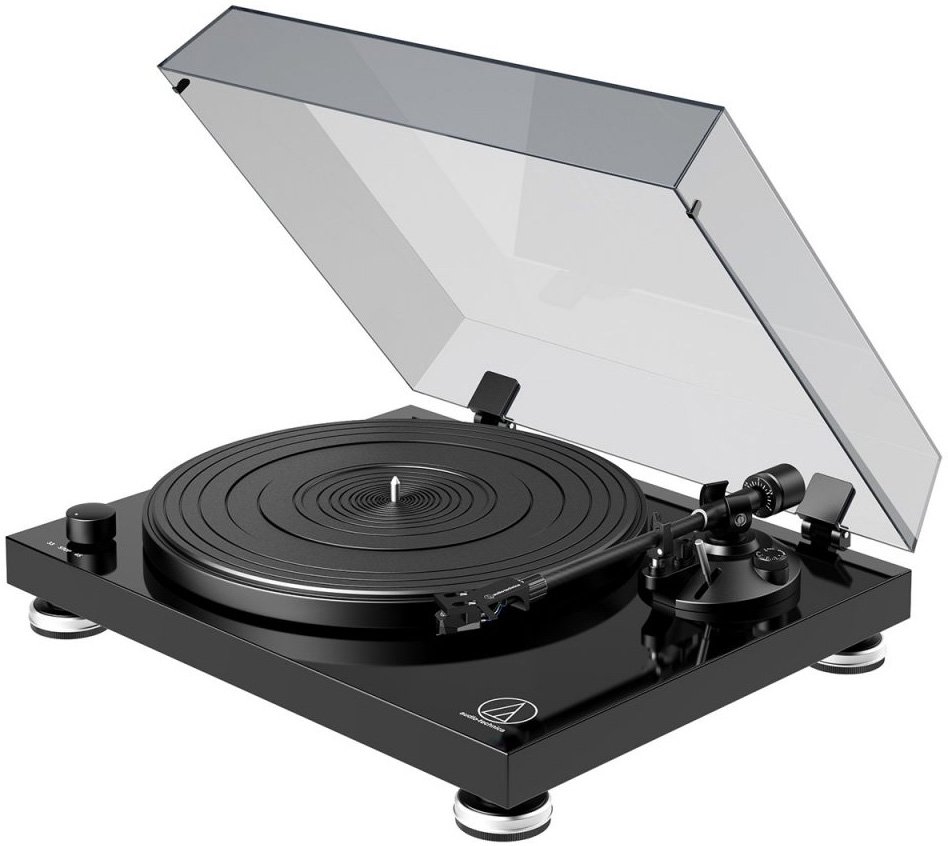

The AT-LPW50PB is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an anti-resonance 30 mm thick MDF (medium density fiberboard) plinth, with a high-gloss, piano-black finish, to dampen low-frequency acoustical feedback, and a sensor-monitored motor to ensure accurate platter rotation speeds of 33-1/3 and 45 RPM.
Features:
- Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
- Motor features a speed-sensor system to maintain accurate platter rotation speed
- Adjustable dynamic anti-skate control
- Professional anti-resonance, die-cast aluminum platter with rubber mat
- AT-HS4 universal ½”-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge (black) with 0.3 x 0.7 mil elliptical stylus
- AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Straight, matte-finish, carbon-fiber tonearm with hydraulically damped lift control and lockable rest
- Anti-resonance 30 mm thick MDF (medium density fiberboard) plinth with high-gloss, piano-black finish
- High-isolation, height-adjustable feet
- Built-in switchable phono preamplifier for phono or line-level output
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover
Specifications:
| Type | Belt-drive manual turntable |
|---|---|
| Motor | DC servo with Active Speed Stabilization |
| Drive Method | Belt drive |
| Speeds | 33-1/3 RPM, 45 RPM |
| Turntable Platter | Die-cast aluminum |
| Wow and Flutter | < 0.15% WRMS (33 RPM) at 3 kHz |
| Signal-to-Noise Ratio | >60dB |
| Output Level | Pre-amp “PHONO”: 4.0 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain | 35 dB nominal, RIAA equalized |
| Power Supply Requirements | 100-240 V, 50/60 Hz, 0.5 A Max. |
| Dimensions | With dustcover: 420.0 mm (16.54″) W x 356.0 mm (14.02″) D x 126.0 mm (4.96″) H Without dustcover and hinges: 420.0 mm (16.54″) W x 356.0 mm (14.02″) D x 114.0 mm (4.49″) H |
| Weight | 5.56 kg (12.26 lbs.) without dust cover |
| Accessories Included | Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge (black), 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3′)), AC adapter (approx. 1.5 m (4.9′)), Dust cover hinges |
| Notes | Tonearm type: Static balanced straight carbon tonearm Effective arm length: 223.6 mm Overhang: 18.6 mm Tracking error angle: <2 degrees Applicable cartridge weight: 12-17 g Stylus pressure adjustment range: 0-3 g Replacement Stylus: AT-VMN95E BK |
Grading: New & Sealed
