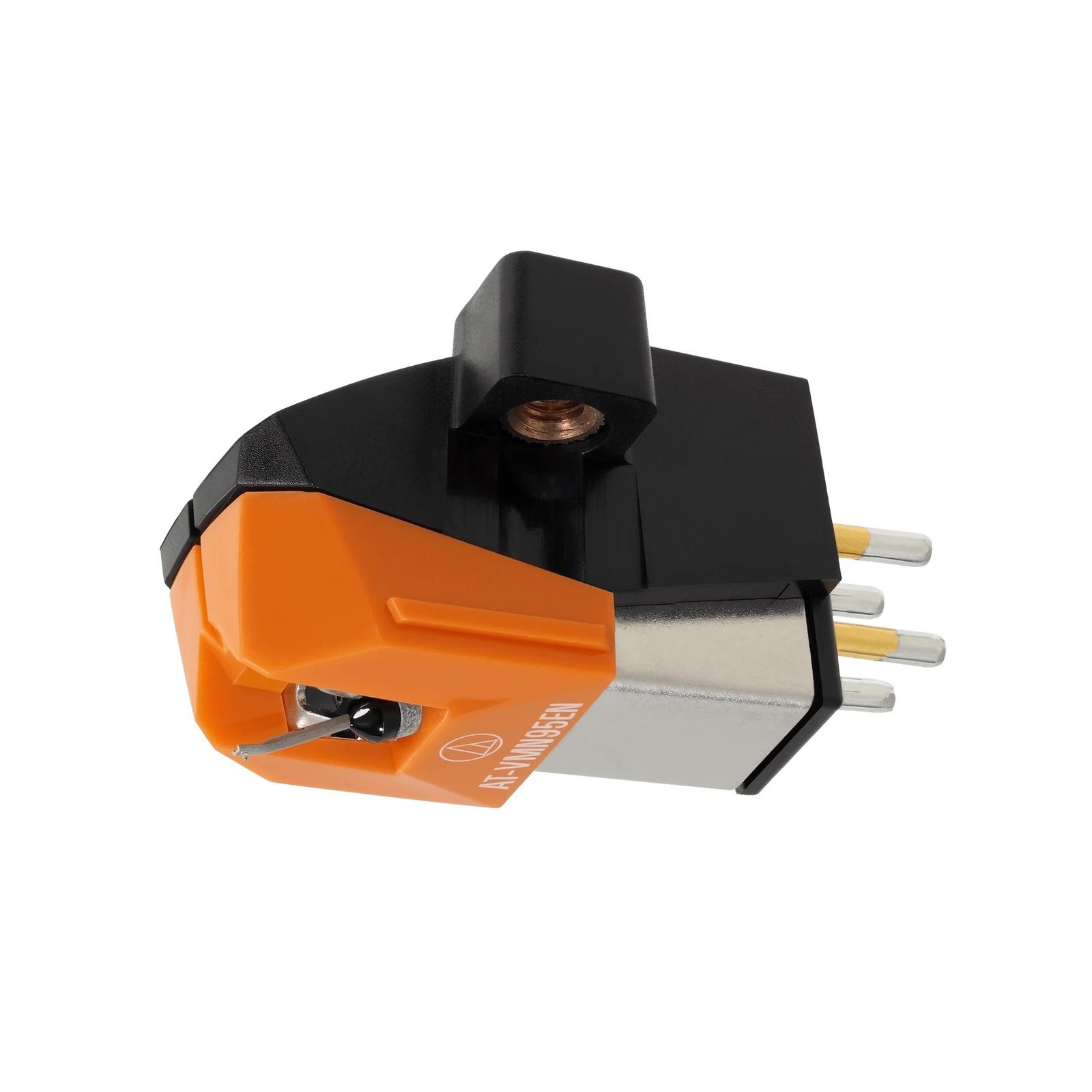

Half-inch mount turntables are compatible with this VM95 Series cartridge, which has an elliptical nude stylus measuring 0.3 x 0.7 mil. For exceptional tonal quality, the cartridge provides low distortion and good channel separation. The cartridge may be attached to the headshell using just two screws and no nuts thanks to the sturdy, low-resonance housing’s threaded inserts. Additionally, any of the six interchangeable AT-VMN95 replacement styli can be used to replace the stylus because all VM95 Series share the same body.
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 – 23,000 Hz |
| Channel Separation | 22 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
| Stylus Construction | Nude Round Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 3.5 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium Pipe |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 7 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centres |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |
| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver |
| Model | AT-VM95EN |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | AT-VMN95EN |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Stereo Dual Magnet |
| Wire Used for Coil | T.P. Copper |
Grading: New & Sealed
