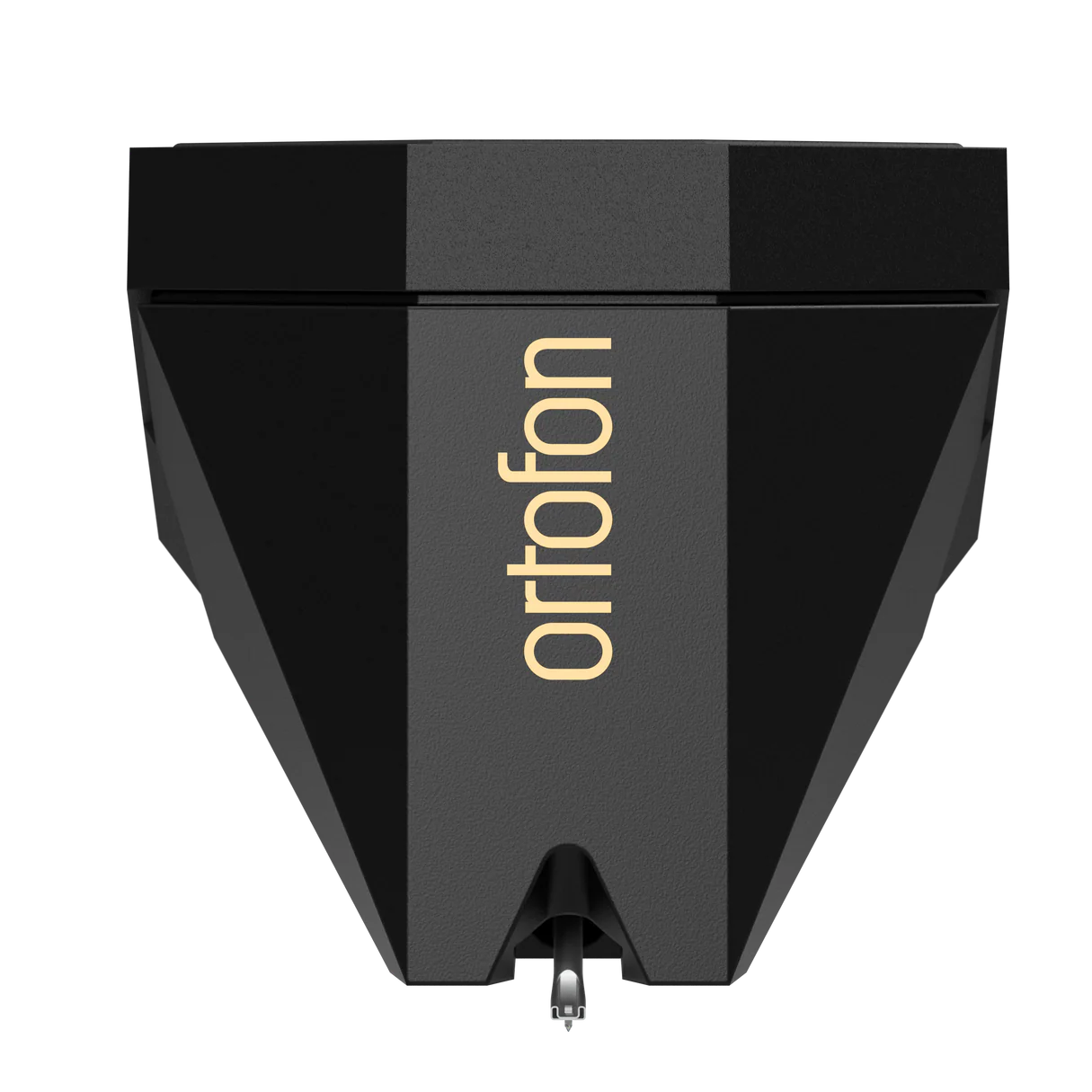

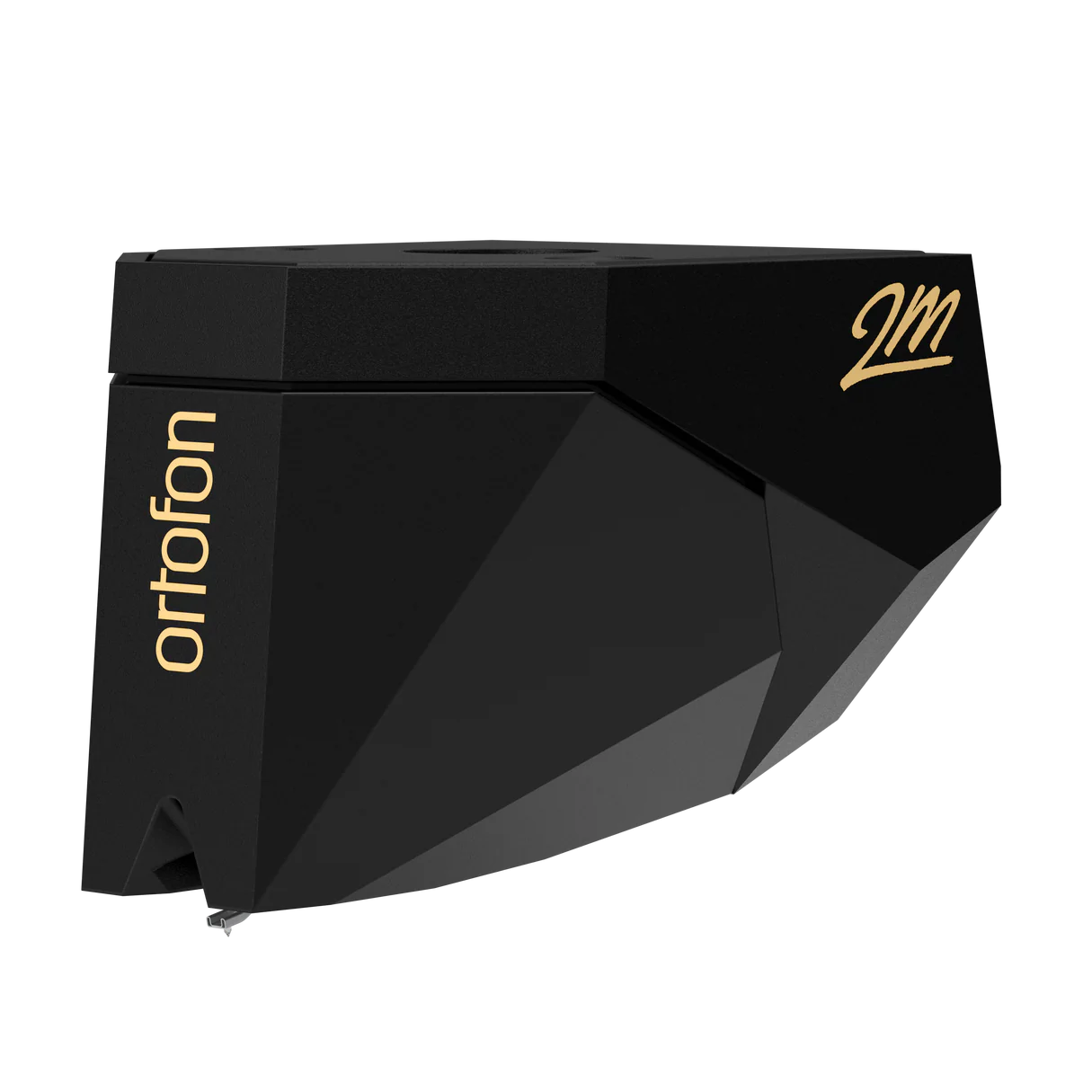

Ortofon 2M Black Cartridge

Ortofon 2M Black Cartridge - Image 2

Ortofon 2M Black Cartridge - Image 3

Ortofon 2M Black Cartridge

R15,180.00

Only 1 left in stock

South African rand (R) - ZAR

South African rand (R) - ZAR
United States dollar ($) - USD
Euro (€) - EUR
Pound sterling (£) - GBP
Canadian dollar ($) - CAD
Australian dollar ($) - AUD
Singapore dollar ($) - SGD

SKU: 5705796080049 Categories: Accessories, Cartridge, Ortofon, Turntables & Electronics Tags: 2m black, 2m black cartridge, cartridge, moving magnet cartridge, ortofon, ortofon 2m black, ortofon 2m black cartridge, replacement cartridge, stylus, the best ortofon Brand: Ortofon

Description
Additional information

2M Black Technical Data

Channel balance at 1 kHz – 1 dB
Output voltage at 1 kHz, 5cm/sec – 5 mV
Channel separation at 1 kHz – 26 dB
Frequency response 20 Hz – 20 kHz – 2 / – 0 dB
Tracking ability at 315 Hz – 80 µm
Compliance, dynamic, lateral – 22 µm/mN
Cantilever material – Aluminium
Stylus type – Nude Shibata
Stylus tip radius – r/R 6/50 µm
Tracking force range – 1.4-1.7 g (14-17 mN)
Tracking force, recommended – 1.5 g (15 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 1.2 kOhm
Cartridge colour – Black/Black
Cartridge weight – 7.2 g
Premounted cartridge weight – 16.7 g
Recommended load resistance – 47 kOhm
Internal inductance – 630 mH
Recommended load capacitance – 150-300 pF

Grading: New & Sealed

Dimensions	33 × 33 × 1 cm
