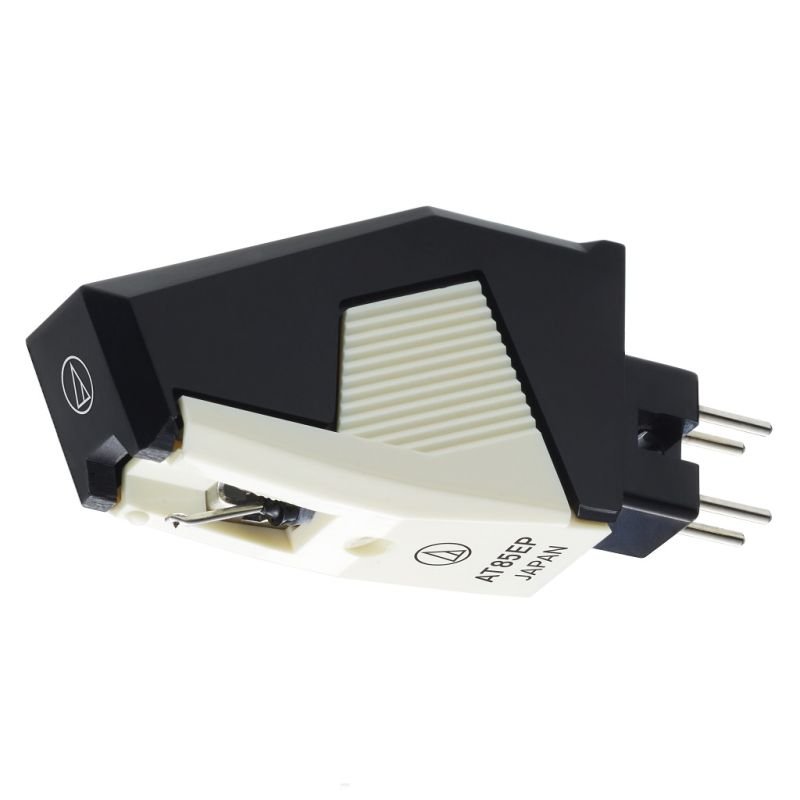

The AT85EP enables owners of linear tracking turntables from Technics, Hitachi, Pioneer, and other brands with T4P plug-in connectors to experience the high-fidelity sound that only Audio-Technica can provide.
The AT85EP from Audio-Technica has a special dual moving magnet design that was created especially for the linear format. To ensure great acoustic clarity and wide channel separation, the para-toroidal coil structure is paired with the dual magnet system.
Audio Technica AT-85EP Technical Data:
| Frequency Response | 20 – 20,000 Hz |
|---|---|
| Channel Separation | 20 dB at 1kHz |
| Vertical Tracking Angle | 20° |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Inductance | 400mH (1 kHz) |
| Output Voltage | 3.5 mV (mV at 1 kHz, 5 cm/sec) |
| Output Channel Balance | 2.0 dB |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium Pipe |
| Mounting | P-mount |
| Dimensions | H10.0×W15.3×D35.1 mm |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN85EP |
| Stylus Size | 0.3 x 0.7 mil |
| Type | Dual Magnet |
| Weight | 6.0g |
