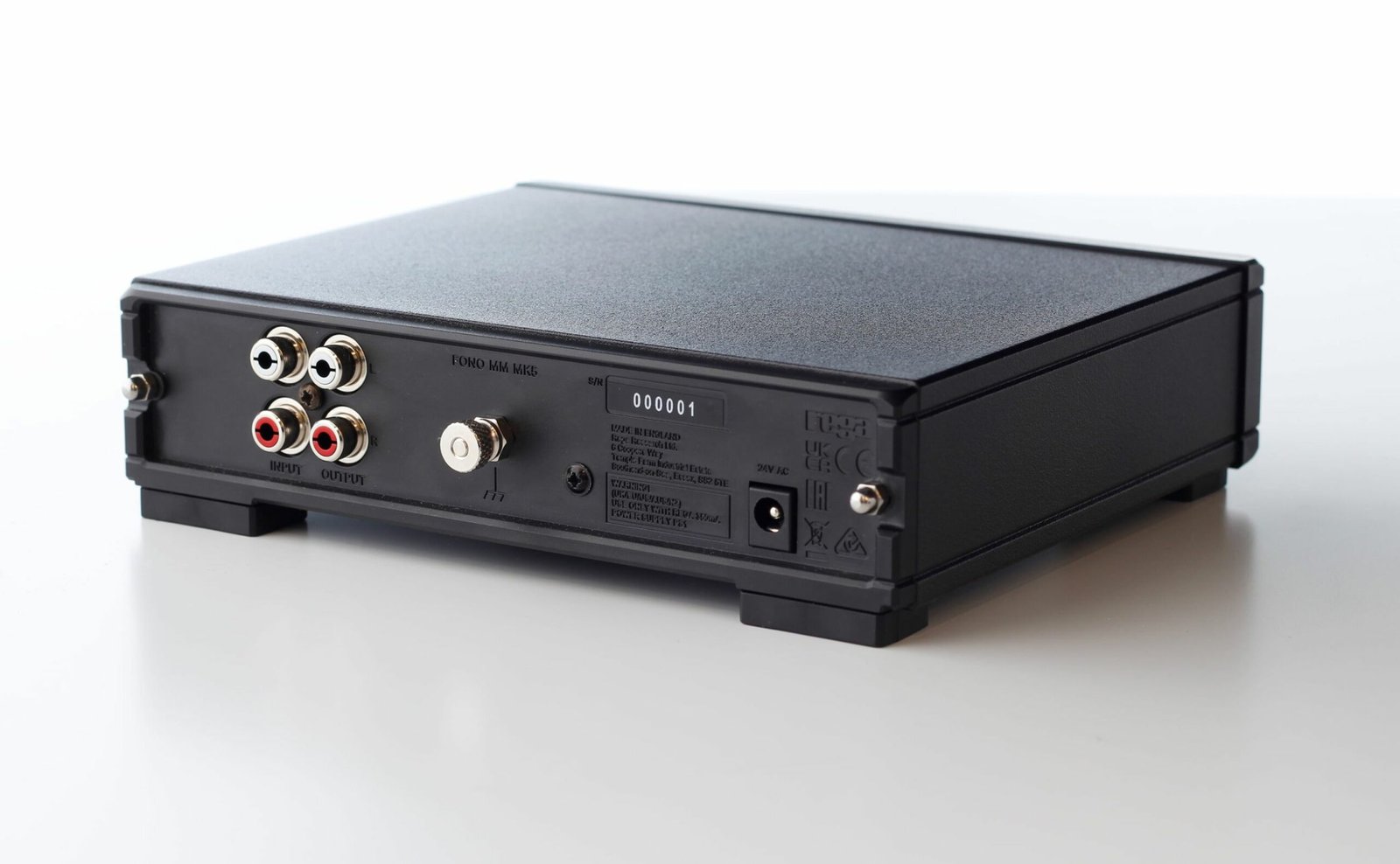

The Fono MM MK5 phono stage has been designed to be effective, easy to use and above all, to reproduce music. The Fono MM MK5 uses a fully discrete, cascaded, complementary amplifier input stage, a configuration designed to optimise the performance of your moving magnet cartridge. Now housed in a brand new redesigned case to match the new Fono MC and Rega’s latest range of electronic components offering a modern look guaranteed to integrate in to any hi-fi system.
Key Features:
- Dedicated Moving Magnet stage
- Simple connectivity and operation
- Custom case design
- Two stage RIAAÂ Equalization
- What Hi-Fi? Award winner 2017/2018/2019/2020/2021
- Lifetime warranty against manufacture defects
Technical Specifications:
- Input Sensitivity
- 1.7 mV for 200 mV Output
- Input Loading
- 47 kΩ in parallel with 100 pF
- Maximum Input Level
- 60 mV at 1 kHz
- Gain
- 41.4 dB at 1 kHz
- Output Impedance
- 200 Ω
- Recommended Minimum Output Load Resistance
- 5 kΩ
- Frequency response (50KΩ output load)
- 15 Hz (-3 dB) to 100 kHz (-0.2 dB)
- RIAA Accuracy (50 kΩ Output Load)
- Better than ±0.2 dB 100 Hz to 100 kHz
- Power Requirements
- 24 V AC at 80 mA maximum
