AT-XP7

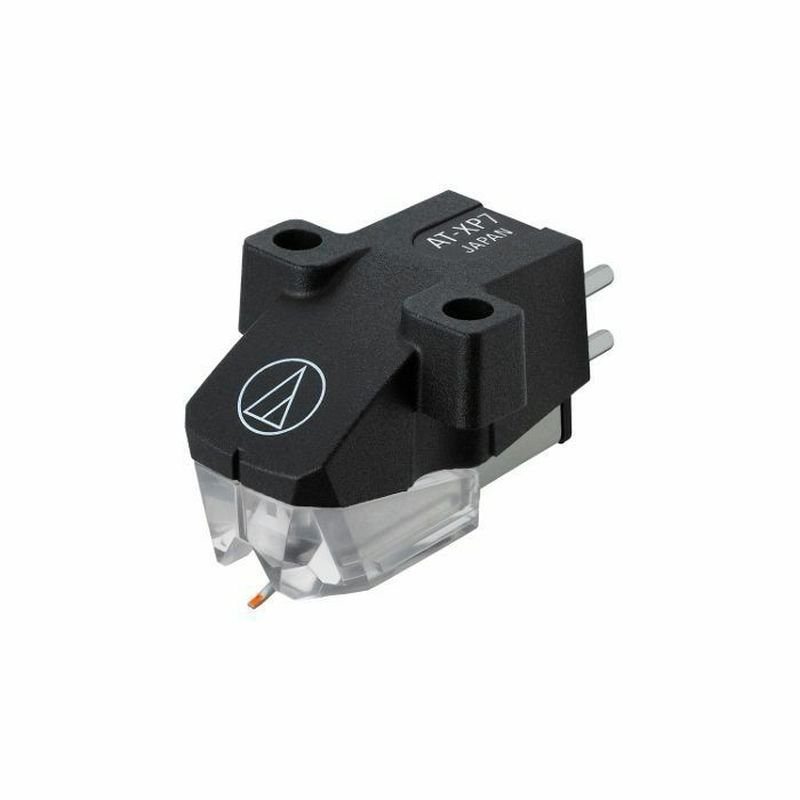

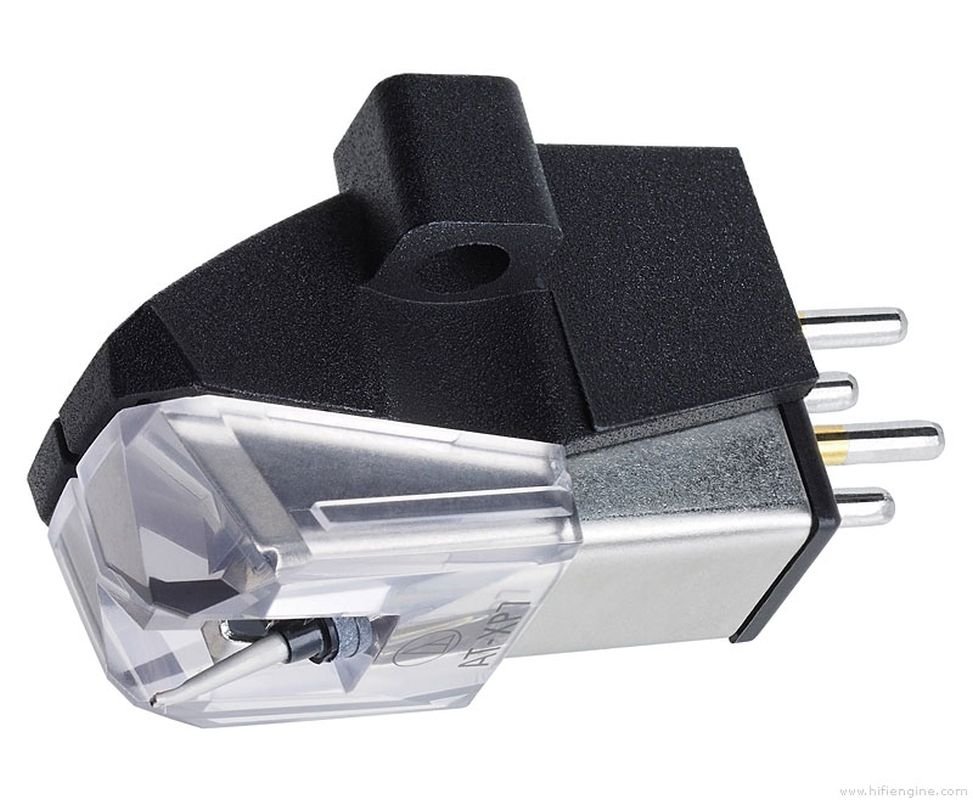

Dual Moving Magnet Stereo Cartridge AT-XP7
The AT-XP7 has been created specifically for DJs. The body of this cartridge is made of polyphenylene sulfide (PPS)/glass fiber and has a tracking force of 2 to 4 grams. It also has a 6.0 mV output level and a 0.3 x 0.7 mil elliptical bonded stylus that tracks the record groove with high accuracy for excellent audio reproduction. Furthermore, the stylus tip is clearly visible thanks to the cartridge’s form.
- Durable, strong design for professional DJ playback.
- Cartridges with high-fidelity audio performance designed for DJ venues.
- In dim situations, the stylus tip has excellent visibility for quick positioning.
- Audiophile experience combined with a DJing environment, with signal output level and output impedance characteristics tailored to DJ mixing boards.
VM dual magnet cartridge with elliptical glued stylus measuring 0.3 x 0.7 mil - Cantilever in tapered aluminum
- Higher frequency expression is possible with stainless wire suspension, resulting in clearer sound.
- Cartridge housing with high stiffness and low resonance
- ATN-XP7 replacement stylus
Cartridge & Stylus
| Frequency Response | 20 – 20,000 Hz |
|---|---|
| Channel Separation | 22 dB at 1kHz |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0 to 4.0 g (standard 3g) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Output Voltage | 6.0 mV (mV at 1 kHz, 5 cm/sec) |
| Output Channel Balance | Output Channel Balance |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium tapered Pipe |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 8.0×10-6cm/dyne (100Hz) |
| Mounting | Half-inch |
| Dimensions | H17.2×W17.8×D28.3mm |
| Accessories Included | Cartridge installation slotted screws 11.0 mm (0.43â€) x 2 and 8.0 mm (0.31â€) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1 |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN-XP7 |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Dual Magnet |
| Weight | 6.2g |
